Transmission towers

Telecommunications & Radio Towers are, typically, tall structures designed to support antennas for telecommunications and broadcasting, including television. They are among the tallest man-made structures.

BASIC RULES

  • The number of light levels recommended depends on the height of the structure;
  • The number and arrangement of light units at each level should be placed so the lighting is visible from every angle in azimuth;
  • Lights are applied to display the general definition of the structure;
  • Width and length of buildings determine the number of lights installed at the top and at each light level.

LIGHTS SPECIFICATIONS

Low intensity lights should be used for structure with H ≤ 45m during night time, if those are considered inadequate, than medium - high intensity lights should be used.

Medium intensity lights type A,B or C should be used to lit extensive object (group of buildings or tree) or structure with 45 m < H ≤ 150 m

Note: Medium intensity lights, type A and C should be used alone, whereas medium intensity lights, Type B should be used either alone or in combination with LIOL-B.

High intensity type A, should be used to indicate the presence of an object if its H > 150 m and an aeronautical study indicates such lights to be essential for the recognition of the object by day

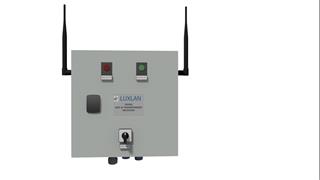

Products used for Transmission towers
