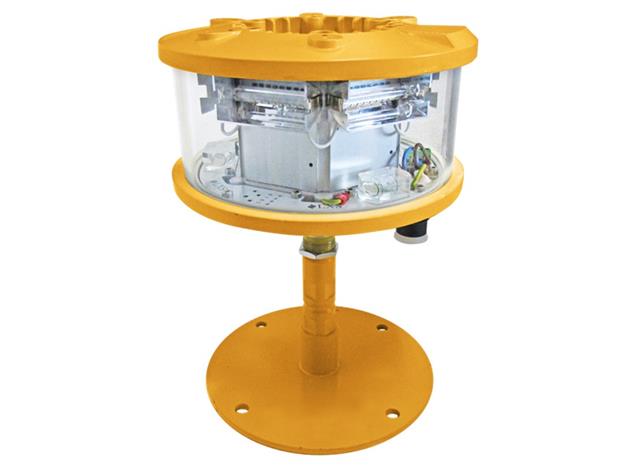

Aeronautical Beacons - ODALS light L859-LXS

A series of five "ODALS" L859-LXS omnidirectional beacons, in combination with two "REIL" L849-LXS omnidirectional beacons, are used to help the pilot to identify which track he must land on.

The L-849-LXS beacons are placed at the edges of the landing strip and completes the sequence of the L-859-LXS beacons. It flashes simultaneously after the flashing of the last 859 beacon.

TECHNICAL FEATURES

  • Based on LED technologies
  • Patent (patent achieved with the contribution of Regione Lombardia "Call for bids Research & Innovation_Measure F"): EU 001929910-0001; Canada 145189; USA D673,474; Turkey TR2012 05662
  • WHITE light - Flashing
  • Intensity three steps: 5.000cd; 1.500cd; 300cd a 60 fpm (Style F - FAA regulation)
  • Long life time >10 years life expectancy
  • Low consumption
  • Lightweight and compact
  • Degree of protection: IP66
  • Wind resistance tested at 240km/h (150mph)
  • Vibration resistance up to: 80m/s2 (10° Mercalli Intensy Scale / 7° Richter Magnitude Scale)
  • Easy to install
  • No RF radiations

OPTIONS

  • Stainless steel beacon support bracket
  • Flow deflector
