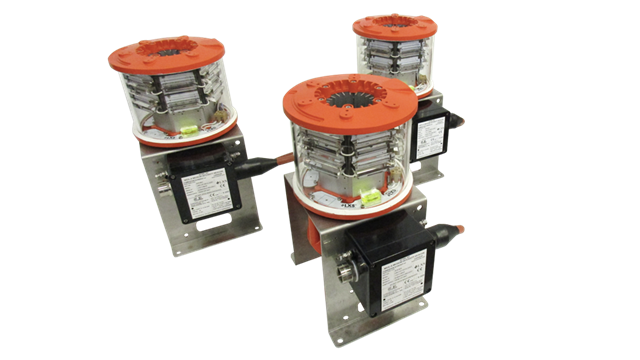

L865-LXS-200-Ex op is White Medium Intensity Obstruction Light for explosion proof area

Medium Intensity Aeronautical Obstruction light (MIOL) WHITE light , multi LED type. In compliance with ICAO Annex 14 Type A and FAA L-865.

MIOL Ex eb mb op is  are used for day and night signalization of vertical structures and horizontal, in explosion proof area with presence of gas and dust

TECHNICAL FEATURES

  • Based on LED technology
  • Patented (Patent achieved with the contribution of Regione Lombardia "Call for bids Research & Innovation_Measure F"): EU 001929910-0001; Canada 145189; USA D673,474; Turchia TR2012 05662
  • Intensity: >20.000cd day mode, WHITE light flashing
  • Intensity: >2.000cd night mode, WHITE light flashing
  • Long life time >10 years life expectancy
  • Low consumption
  • Stabilised light output
  • Lightweight and compact
  • Low wind load factor
  • Easy to install
  • No RF-radiations
  • Degree of protection: IP66​
  • Operating Temperature: 30°C to +50°C
  • Weight: 6kg
  • Anti-Condensation Gore-Tex Valve
  • Execution ATEX for Zone 1: Ex II 2GD / Ex eb mb op is IIC T6 Gb / Ex op is tb IIIC T80° Db IP66
  • Execution ATEX for Zone 2: Ex II 3GD / Ex eb mb IIC T6 Gc / Ex tb IIIC T80° Dc IP66
  • Execution IECEx for Zone 1: Ex eb mb op is IIC T6 Gb / Ex op is tb IIIC T80° Db IP66
  • Execution IECEx for Zone 2:Ex eb mb IIC T6 Gc / Ex tb IIIC T80° Dc IP66

OPTIONS

  • Twin version: two galvanically separated circuits in the same fixture

CERTIFICATION

  • Certificate of conformity ENAC and ICAO Annex 14
  • Certificate ATEX for Zone 1: EPT 18 ATEX 3019X
  • Certificate ATEX for Zone 2: EPTI 18 ATEX 0353X
  • Certificate IECEx for Zone 1: in progress
  • Certificate IECEx for Zone 2: IECEx EUT 18.0029X
