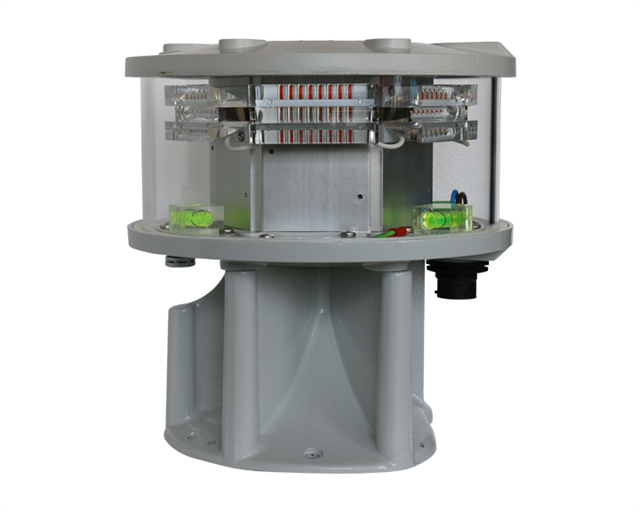

L864-LXS Medium Intensity Obstacle Light red

Medium Intensity Obstruction Lights (MIOL), red light, multi-LED type. According to ICAO - Annex 14 - Medium Intensity Obstacle Lights Type B or Type C and FAA L-864.


Medium Intensity Obstacle Lights Type B should be used either alone or in combination with Low Intensity Obstacle Lights Type B for night mode, whereas
Medium Intensity Obstacle Lights Type Cshould be used either alone or in combination with Medium Intensity Obstacle Lights Type AC for daily and night mode where the obstacle is particularly large and the height of the surrounding soil is more than 45m.

TECHNICAL FEATURES

  • Based on LED technology
  • Patented Beacon (Patent achieved with the contribution of Regione Lombardia "Call for bids Research & Innovation_Measure F"): EU 001929910-0001; Canada 145 189; USA D673,474; Turkey TR2012 05662
  • RED light - Flashing (MIOL-B)
  • RED light - Steady Burning (MIOL-C)
  • Intensity: >2000cd
  • Long life time >10 years life expectancy
  • Low consumption
  • Lightweight and compact
  • Degree of Protection: IP66
  • No RF-radiations
  • Easy to install
  • Wind resistance tested at 240km/h (150mph)
  • Vibration resistance up to: 80m/s2 (10° Mercalli Intensity Scale / 7° Richter Magnitude Scale)

OPTIONS

  • Twin version: two galvanically separated circuits in the same fixture
  • Stainless Steel beacon support bracket
  • Infrared version: IR wavelength 850nM
  • Flow deflector

CERTIFCATIONS

  • DGAC/STAC approval nr. 2013A037
  • ENAC approval nr. 0135182/ENAC/CIA
