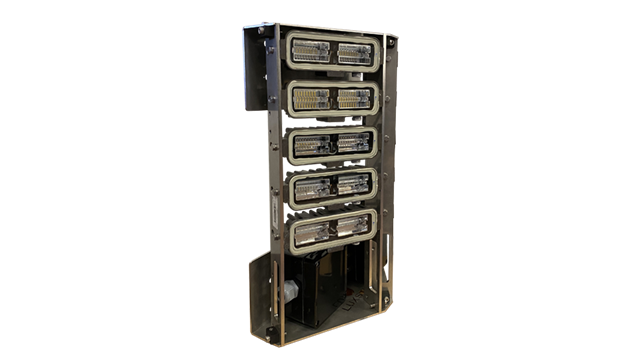

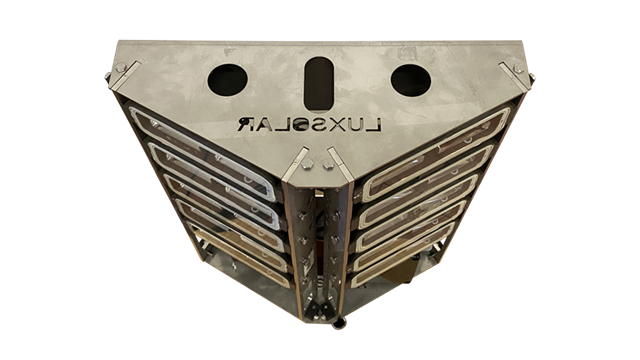

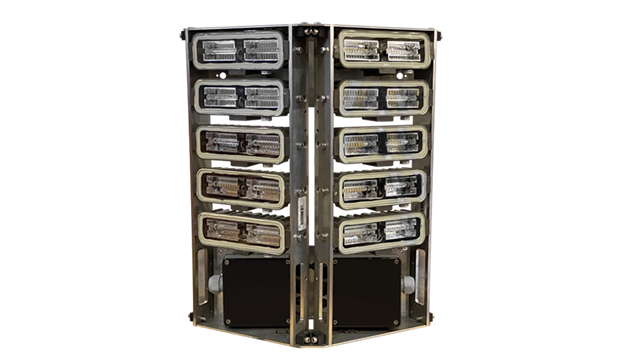

L857-LXS High Intensity Obstacle Lights

High Intensity Obstacle Light Type B (120° or 360°), multi-LED type. The High Intensity Obstruction Light is compliant to ICAO (Type B) and FAA (Type;L-857).

High Intensity Obstruction Lights are used to indicate the presence of structures whose height above the level of the surrounding ground exceeds 150m.

TECHNICAL FEATURES

  • Based on LED technologies
  • Patented Beacon (Patent achieved with the contribution of Regione Lombardia "Call for bids Research & Innovation_Measure F"): EU 001929910-0001; USA D673,475; Canada 145189; Turkey TR201205663
  • WHITE light - flashing 100.000cd day-mode
  • WHITE light - flashing 20.000cd twilight-mode
  • WHITE light - flashing 2.000cd night-mode
  • Long life time >10 years life expectancy
  • Degree of Protection: IP66
  • Wind resistance tested at 240km/h (150mph)
  • Vibration resistance up to: 80m/s2

OPTIONS

  • Dual AB version: white light flashing on day, red light flashing on night
  • Dual AC version: white light flashing on day, red light steady burning on night
  • Infrared version
  • Stainless Steel Beacon support bracket
